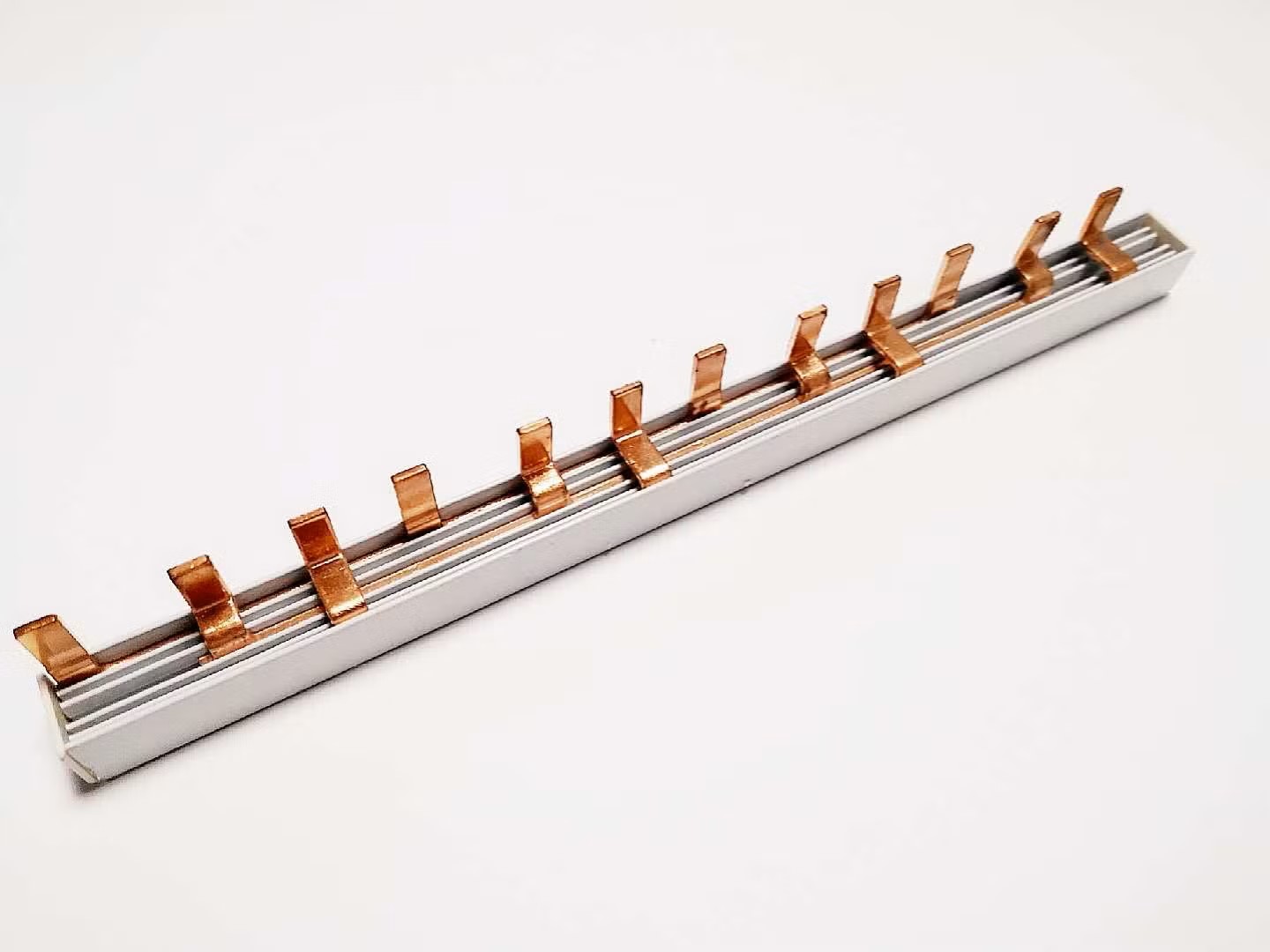

BARRA COLECTORA PUENTE 2 POLOS HAGER KB 280 B - 1 METRO - 80 AMP

BARRA COLECTORA PUENTE 2 POLOS HAGER KB 280 B – 1 METRO – 80 AMP

$ 54,60

10 disponibles

Categoría:

Descripción

Technical properties

Archi­tec­ture
  • Number of poles
    2 P
  • Type of pole
    2 P
Config­ur­a­tion
  • Number of modules
    57
Compat­ib­ility
  • Intended for the compat­ible refer­ences
    Modular devices
Main elec­trical features
  • Rated oper­a­tional voltage Ue
    230 / 400 V
Voltage
  • Max oper­ating voltage
    400 V
  • Rated impulse with­stand voltage
    4 kV
Elec­tric current
  • Rated current
    80 A
Dimen­sions
  • Length
    1000 mm
  • Pitch
    17.8 mm
  • Fixa­tion distance in module steps
    2
Power supply
  • Number of phases for the power supply
    2 phases
Install­a­tion, mounting
  • Suit­able to a device with an auxil­iary
    No
Connec­tion
  • Connec­tion cross-sect. rigid cable
    16mm²
  • Suit­able for product with neutral busbar
    Yes
  • Connector type
    busbar prong
  • Type of connec­tion
    with screw
Equip­ment
  • Number of appli­ances to build in
    28
Safety
  • REACH conform
    No
  • RoHS conform
    Yes
Use condi­tions
  • Insu­lated
    Ye
