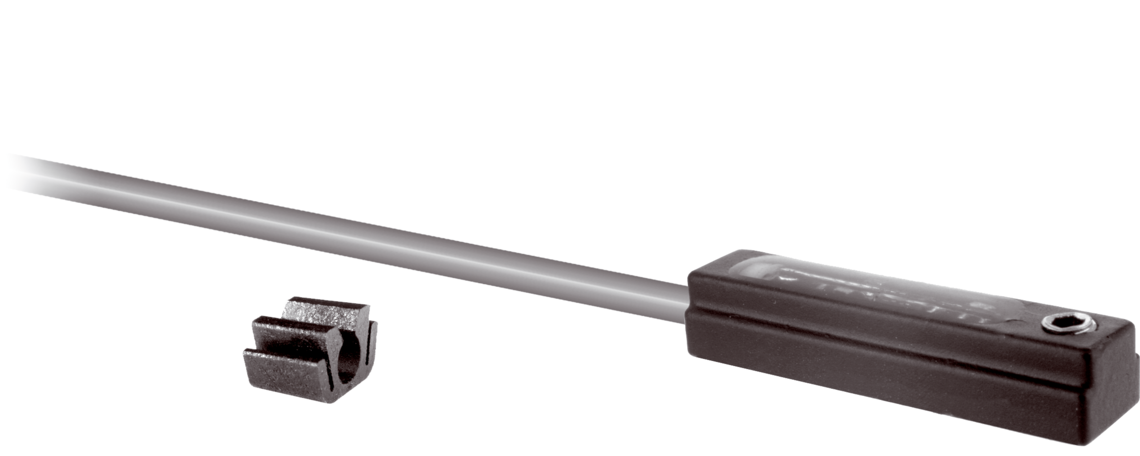

Sensor Para Piston Di-soric Mzet 25 Psk-k-tssl - Pnp
Sensor Para Piston Di-soric Mzet 25 Psk-k-tssl - Pnp - Imagen 2
Sensor Para Piston Di-soric Mzet 25 Psk-k-tssl - Pnp - Imagen 3

Sensor Para Piston Di-soric Mzet 25 Psk-k-tssl – Pnp

$ 157,20

1 disponibles

Categoría:

Descripción

Sensor Para Piston Di-soric Mzet 25 Psk-k-tssl – Pnp
Electrical features
Current-carrying capacity
200 mA, short-circuit-proof, polarity-safe
Service voltage
10 … 30 V DC
No-load current (max.)
10 mA
Insulation voltage endurance
500 V
Mechanical features
Cylinder groove
T-groove, insertion in lateral direction of groove
Mounting
Locking screw (Allen screw SW 1.5 mm)
Housing material
Die-cast zinc
Material of cable
Polyurethane
Certifications, approvals
Protection class
III, operation on protective low voltage
Output, input, interface
Switching output
pnp, 200 mA, NO, short-circuit-proof
Voltage drop (max.)
2 V
Switching capacity
< 6 W (30 V, 200 mA)
Detection range, measuring range, tolerance limits
Reproducibility
0.1 mm
Display, operation
Display
LED yellow – Output signal
Time behavior
Switching frequency
1000 Hz
Ambient conditions
Ambient temperature during operation
-25 … +70 °C
Protection type
IP 68 (Device and cable) / IP 67 (Connection plug)
Electrical connection
Connection
Pigtail, 0.3 m, M8, 3-pin
Accessories
Connection cable
TK …
