Descripción

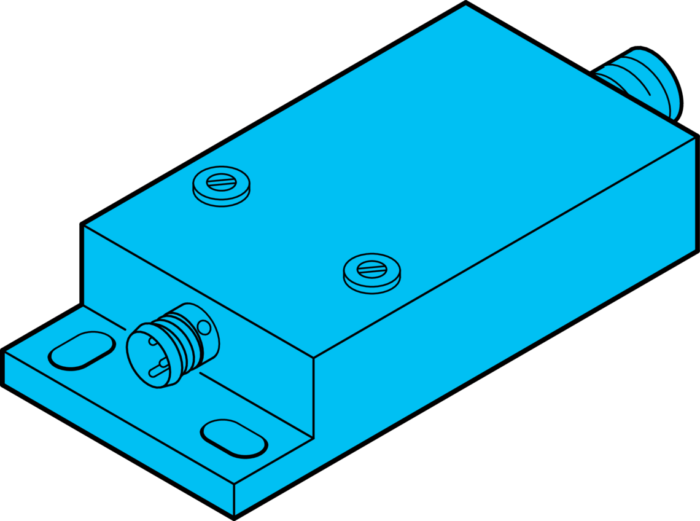

Sensor Di-soric Ov 70 P2-tssl – 24vdc – 200ma – Pnp – No
Service voltage
20 … 35 V DC
No-load current (max.)
60 mA
Insulation voltage endurance
500 V
Housing material
Aluminum (Black, Anodized)
Protection class
III, operation on protective low voltage
Operating principle
Dynamic
Evaluation
dynamic
Switching output

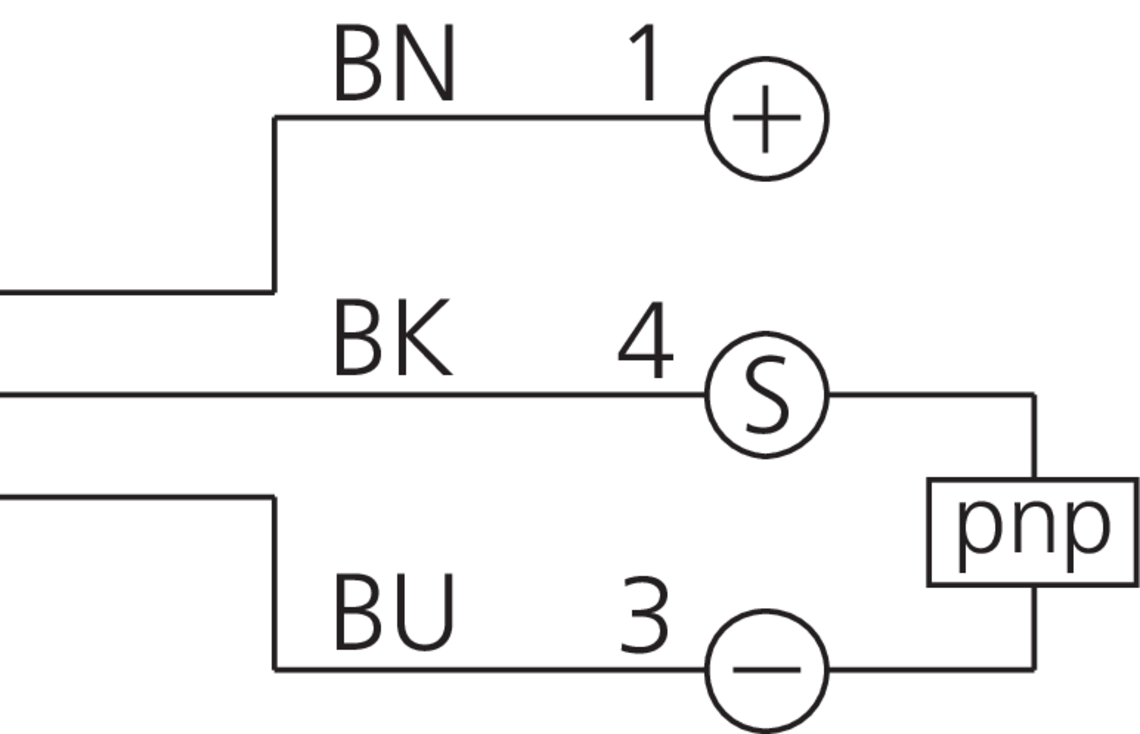

pnp, 200 mA, NO
Voltage drop (max.)
2 V
Pulse stretching
1 … 150 ms adjustable
Response time
0.10 ms
Ambient temperature during operation
0 … +50 °C
Protection type
IP 65
