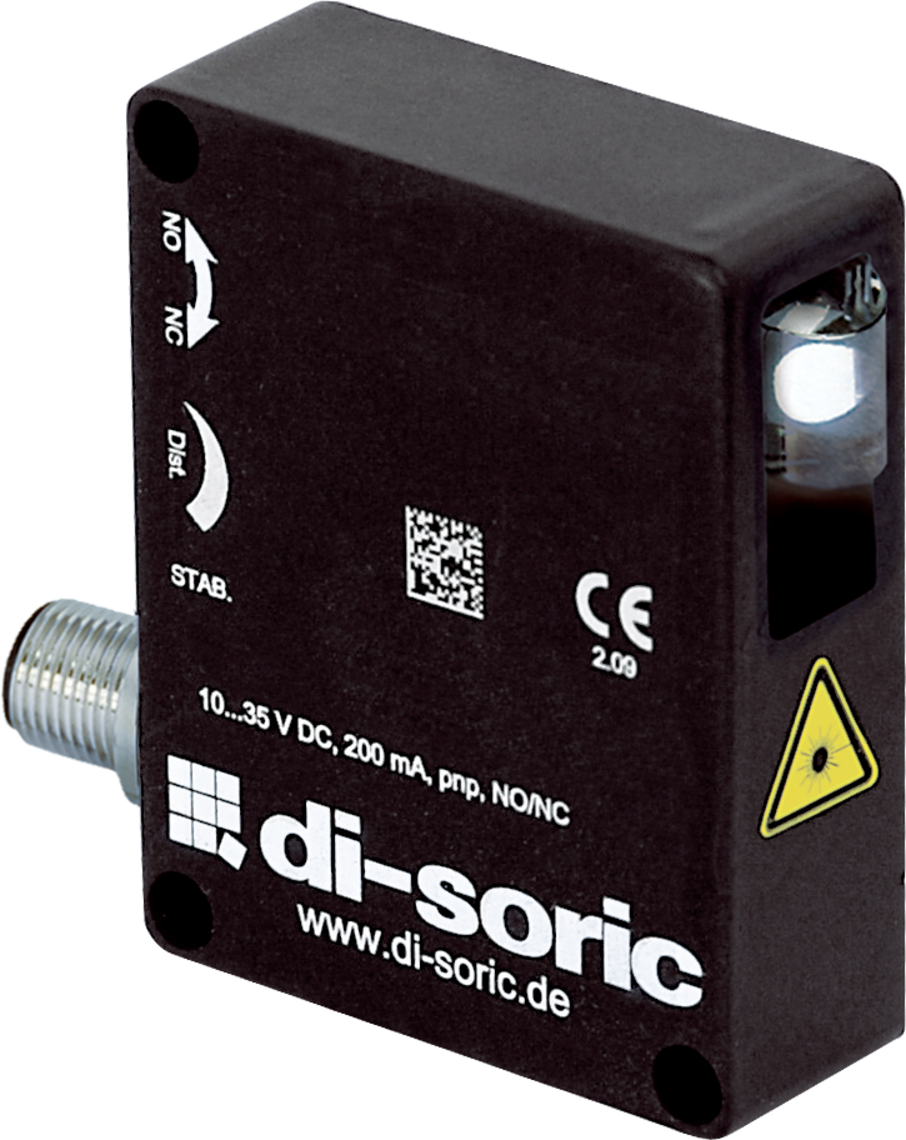

Sensor Laser Di-soric Llrvti 51 M 500 P3k-ibs - Pnp - No Nc
Sensor Laser Di-soric Llrvti 51 M 500 P3k-ibs - Pnp - No Nc - Imagen 2
Sensor Laser Di-soric Llrvti 51 M 500 P3k-ibs - Pnp - No Nc - Imagen 3

Sensor Laser Di-soric Llrvti 51 M 500 P3k-ibs – Pnp – No Nc

$ 217,30

1 disponibles

Categoría:

Descripción

Sensor Laser Di-soric Llrvti 51 M 500 P3k-ibs – Pnp – No Nc



Service voltage
10 … 35 V DC
No-load current (max.)
30 mA
Insulation voltage endurance
500 V
Mechanical features

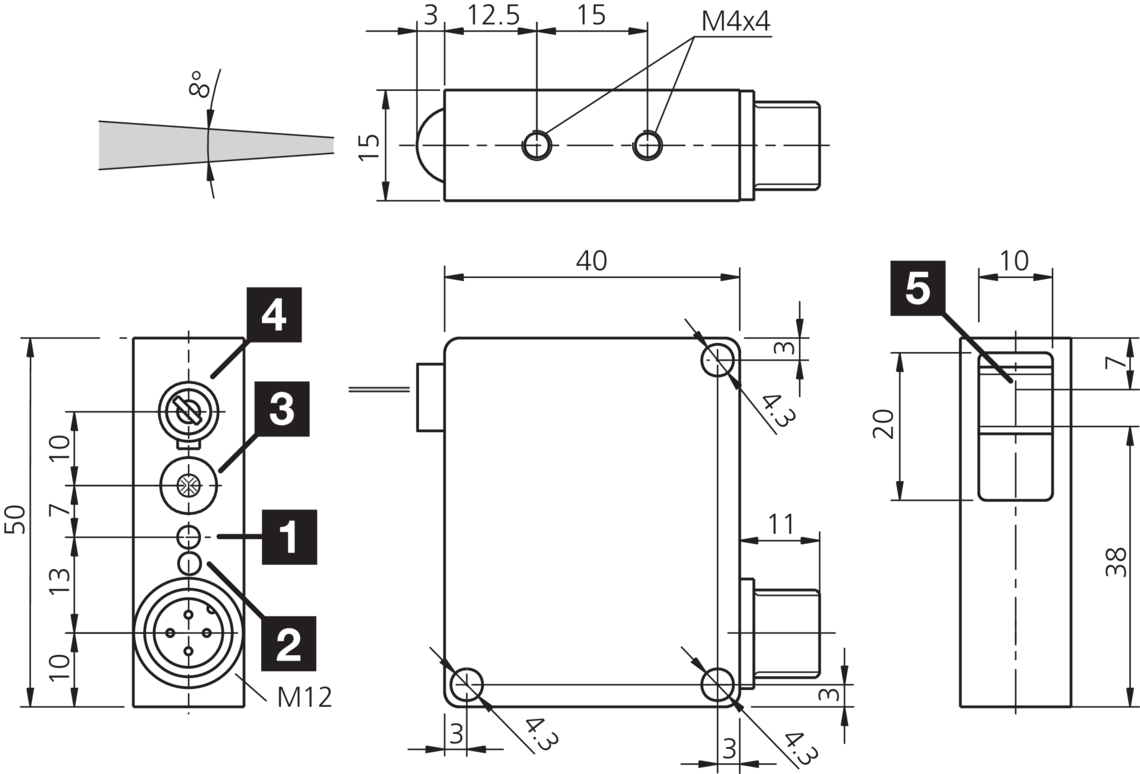

Housing dimensions
50 x 40 x 15 mm
Housing length
40 mm
Housing height
50 mm
Housing width
15 mm
Housing material
Die-cast zinc (Black, painted)
Material
PMMA (Window)
Certifications, approvals
Protection class
III, operation on protective low voltage
General features
Operating principle
Retroreflective sensor
Evaluation
digital
Design
Cuboid design
Output, input, interface
Switching output
pnp, 200 mA, NO/NC, switchable
Optical data
Light source
Laser
Laser class
1 (IEC 60825-1)
Color
red
Wavelength
670 nm
Modulation
Clocked
Ambient light immunity
15 kLx
Detection range, measuring range, tolerance limits
Range
50 … 500 mm
Resolution
25.0 … 100 % (Light band cover)
Display, operation
Sensitivity adjustment
Potentiometer
Time behavior
Switching frequency
750 Hz
Ambient conditions
Ambient temperature during operation
+5 … +50 °C
Protection type
IP 67
Electrical connection
Connection
Connector, M12, 3-pin
Accessories
Connection cable
VK …
