Descripción

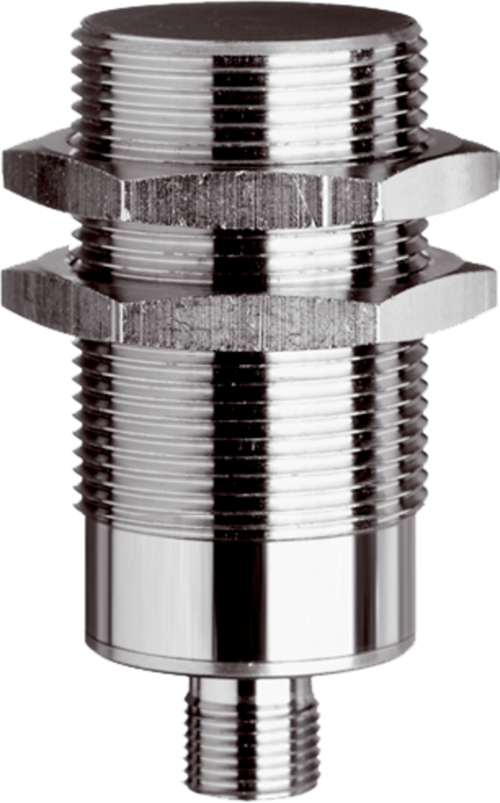

Sensor Inductivo Di-soric Dcc 30 M 10 Pslk – Pnp – No
Service voltage
10 … 30 V DC
Internal power consumption
< 10 mA
Insulation voltage endurance
500 V
Installation type
Flush
Thread
M30 x 1.5
Housing length
65 mm
Housing material
Brass (nickel-plated)
Protection class
III, operation on protective low voltage
Operating principle
inductive
Evaluation
digital
Design
Thread
Product series
INS-100 Standard
Switching output
pnp, 200 mA, NO
Voltage drop (max.)
2.4 V
Switching distance (SN)
10 mm
Standardized measuring plate
30 x 30 x 1 mm
Switching hysteresis (max.)
< 15 %
Switching frequency
500 Hz
Ambient temperature during operation
-25 … +70 °C
Protection type
IP 67
Connection
Connector, M12, 4-pin, A-coded
Connection cable
VK …
