Descripción
Sensor Inductivo Di-soric Dcc 18 M 05 Psk-ibsl – Pnp – No

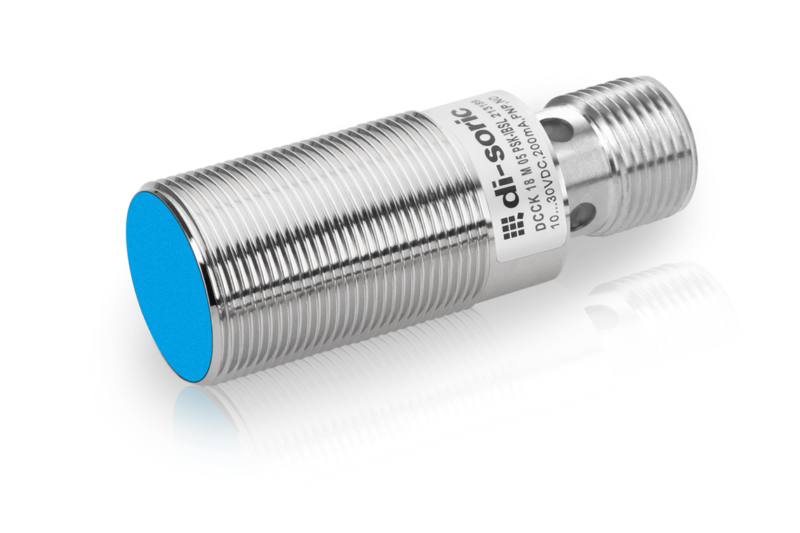

nductive proximity sensor IND-100 Short design
DCCK 18 M 05 PSK-IBSL
Article Number: 206669
Our inductive proximity sensors from the IND-100 series impress with their short design and their outstanding price-performance ratio in many industrial applications, especially when installation space is scarce.
- Metal connector
- Integrated amplifier
- Short-circuit protection
- Starting pulse suppression
- LED
Service voltage
10 … 30 V DC
Internal power consumption
< 10 mA
Insulation voltage endurance
500 V
Installation type
Flush
Thread
M18 x 1
Housing length
50 mm
Housing material
Brass (nickel-plated)
Tightening torque (max.)
25 Nm
Protection class
III, operation on protective low voltage
Operating principle
inductive
Evaluation
digital
Design
Thread
Product series
IND-100 Short design
Switching output
pnp, 200 mA, NO
Voltage drop (max.)
2.4 V
Switching distance (SN)
5 mm
Standardized measuring plate
18 x 18 x 1 mm
Switching hysteresis (max.)
< 10 %
Switching frequency
800 Hz
Ambient temperature during operation
-25 … +70 °C
Protection type
IP 67
Connection
Connector, M12, 3-pin, A-coded
Connection cable
VK …
