Sensor Inductivo Di-soric Dcc 08 M 03 Pslk - Pnp - No -
Sensor Inductivo Di-soric Dcc 08 M 03 Pslk - Pnp - No - - Imagen 2
Sensor Inductivo Di-soric Dcc 08 M 03 Pslk - Pnp - No - - Imagen 3

Sensor Inductivo Di-soric Dcc 08 M 03 Pslk – Pnp – No –

$ 91,10

1 disponibles

Categoría:

Descripción

Sensor Inductivo Di-soric Dcc 08 M 03 Pslk – Pnp – No –

Electrical features
Service voltage
10 … 30 V DC
Internal power consumption
< 10 mA
Insulation voltage endurance
500 V

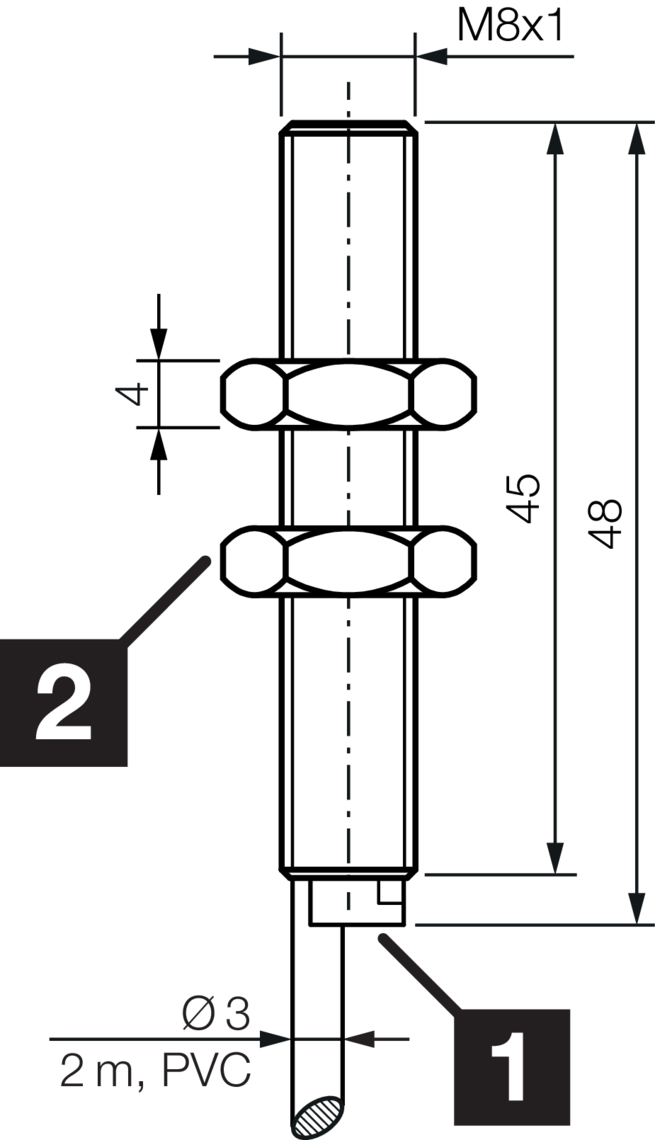

Mechanical features
Installation type
Flush
Thread
M8 x 1
Housing length
45 mm
Housing material
Brass
Material of cable
PVC
Certifications, approvals
Protection class
III, operation on protective low voltage
General features
Operating principle
inductive
Evaluation
digital
Design
Thread
Characteristics
extremely high operating distance
Product series
INE Extended
Output, input, interface
Switching output
pnp, 200 mA, NO
Voltage drop (max.)
2 V
Detection range, measuring range, tolerance limits
Switching distance (SN)
3 mm
Standardized measuring plate
9 x 9 x 1 mm
Switching hysteresis (max.)
< 15 %
Time behavior
Switching frequency
1000 Hz
Ambient conditions
Ambient temperature during operation
-25 … +70 °C
Protection type
IP 67
Electrical connection
Connection
Cable, 2.0 m (flying leads)
