Descripción
Sensor Di-soric Osv 40 K 2000 Tsl – 24vdc
Through-beam sensors consist of transmitter and receiver, each of which are arranged in a housing. Transmitter and receiver are mounted opposite one another. Nontransparent, shiny and reflective objects can be reliably recognized. Through-beam sensors make long ranges possible, with the highest degree of functional safety. Cleaning and maintenance cycles can be reduced to a minimum through the use of through-beam sensors.
- Compact design
- Infrared light
- Sensitivity is adjustable
- High resolution
Service voltage
10 … 35 V DC
No-load current (max.)
20 mA
Insulation voltage endurance
500 V

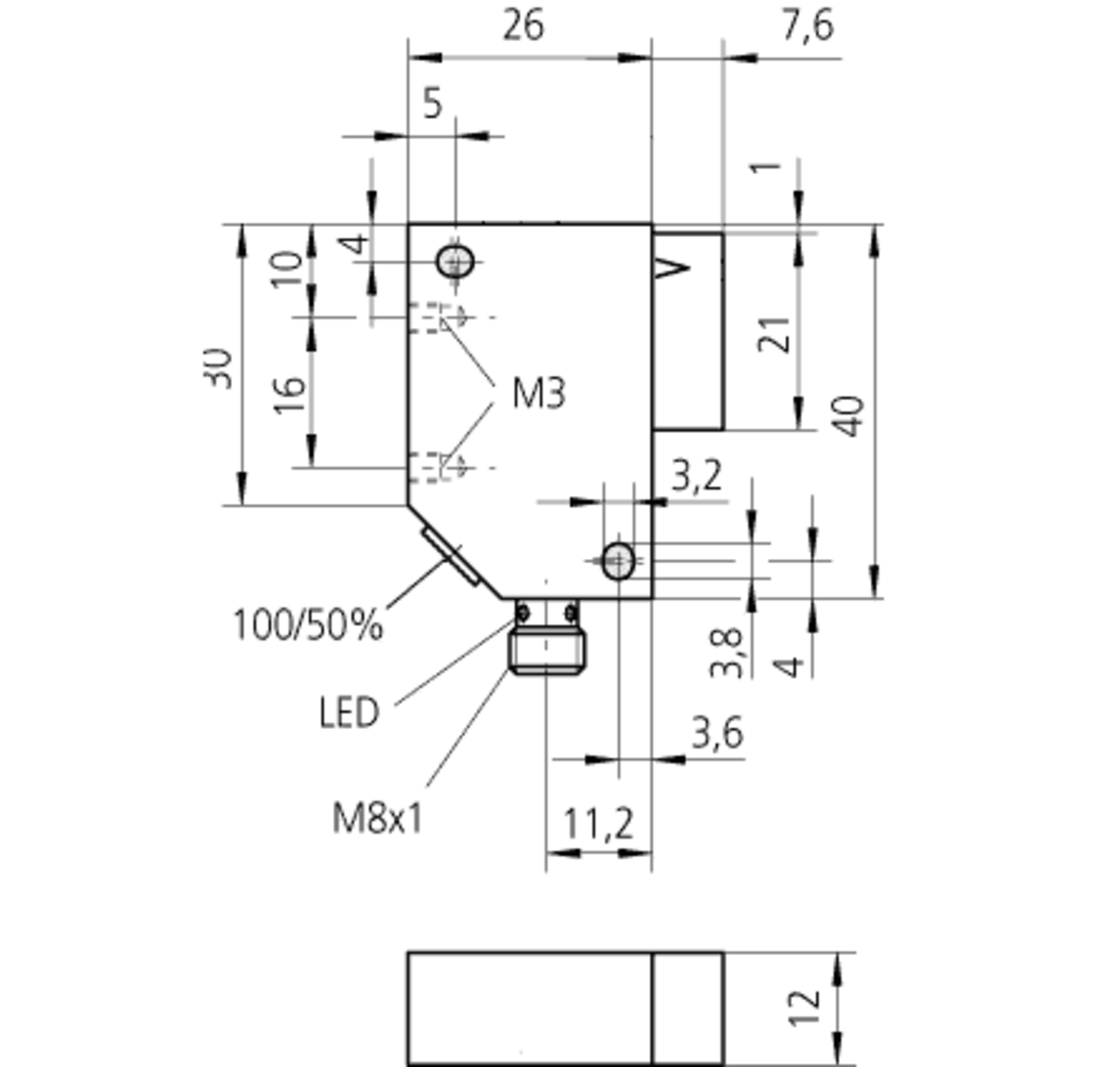

Housing dimensions
40 x 34 x 12 mm
Housing length
34 mm
Housing height
40 mm
Housing width
12 mm
Housing material
Polyamide (glass-fiber reinforced)
Protection class
III, operation on protective low voltage
Operating principle
Through-beam sensor
Evaluation
digital
Design
Cuboid design
Range
0 … 2000 mm
Sensitivity adjustment
no setting elements
Shock/vibration load
30 g, 11 ms / 10 … 55 Hz, 1.0 mm
Ambient temperature during operation
0 … +60 °C
Protection type
IP 67

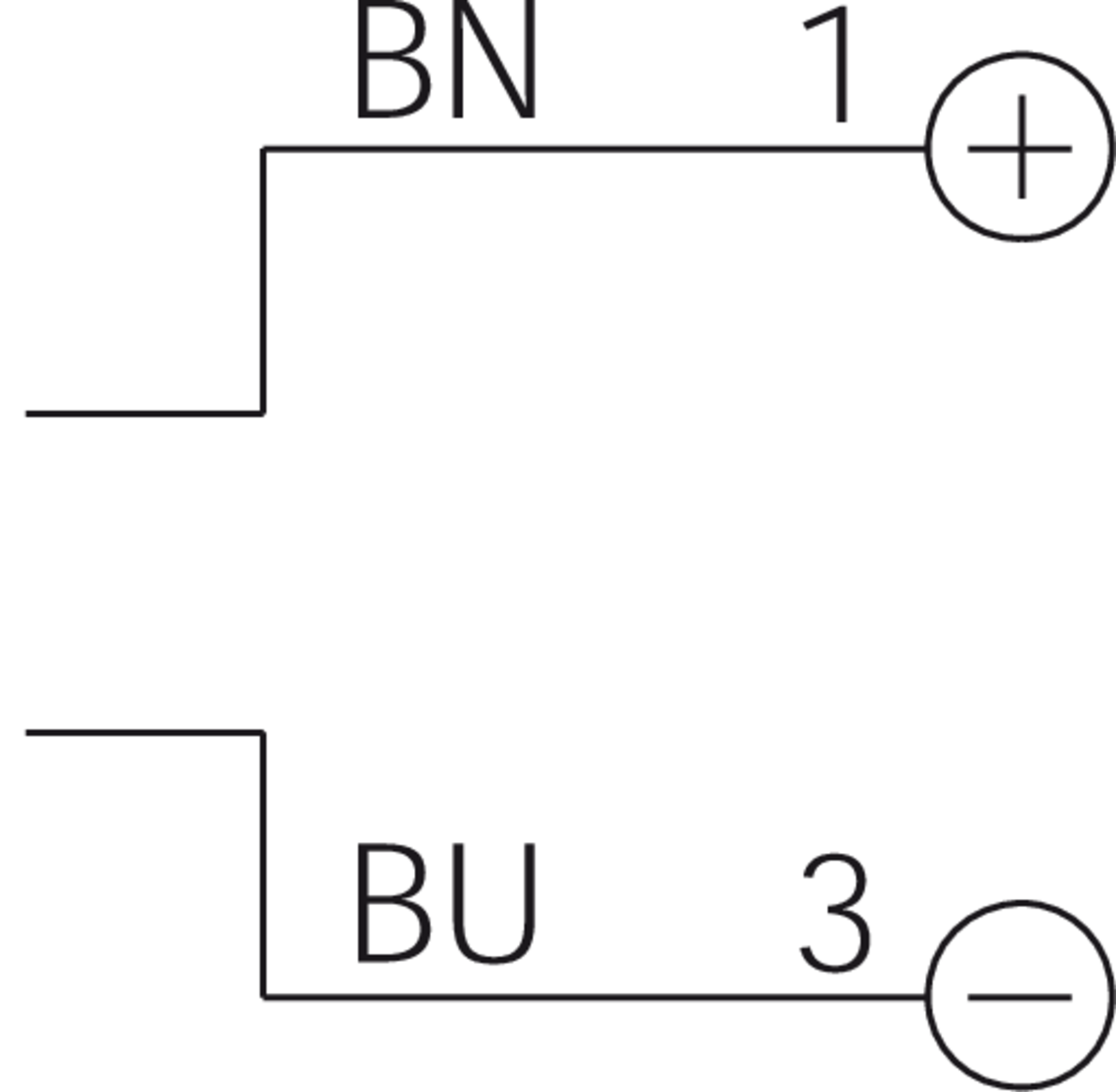

Connection
Pigtail, M8, 3-pin
