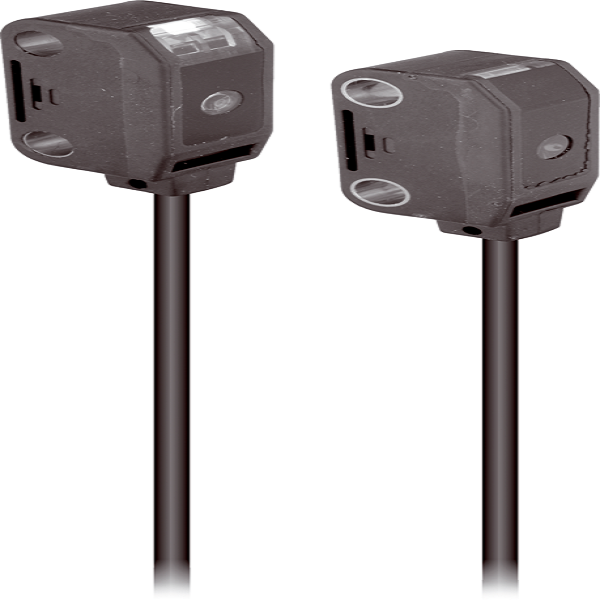

Sensor Di-soric Oesv 19 K 2000 Pk3
Through-beam sensors consist of transmitter and receiver, each of which are arranged in a housing. Transmitter and receiver are mounted opposite one another. Nontransparent, shiny and reflective objects can be reliably recognized. Through-beam sensors make long ranges possible, with the highest degree of functional safety. Cleaning and maintenance cycles can be reduced to a minimum through the use of through-beam sensors.
- Compact design
- Red light
- Sensitivity is adjustable
- High resolution, switching frequency
Service voltage
12 … 24 V DC
No-load current (max.)
15 mA
Insulation voltage endurance
1000 V

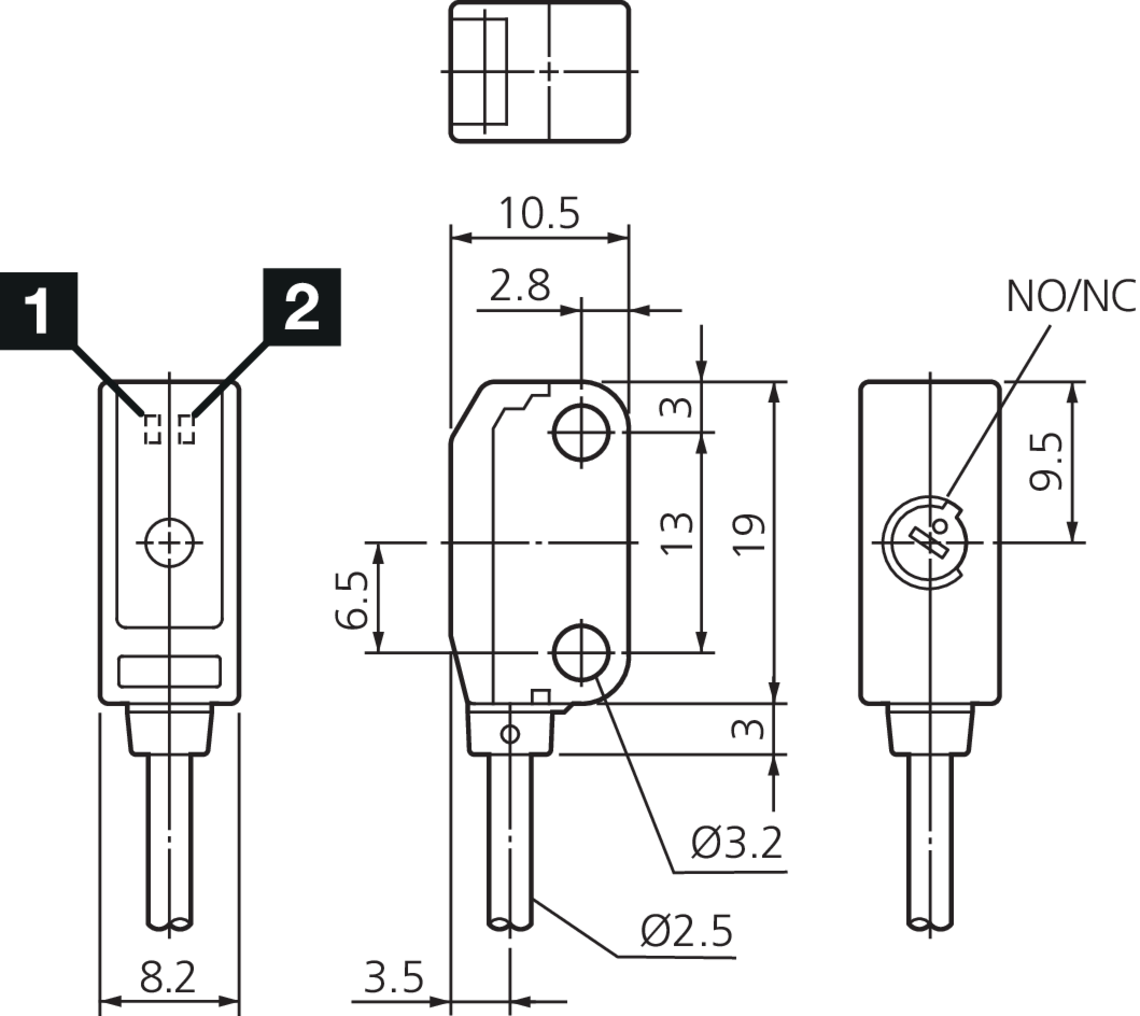

Housing dimensions
19 x 10 x 8 mm
Housing length
10 mm
Housing height
19 mm
Housing width
8 mm
Housing material
Plastic
Material
Plastic (Window)
Protection class
III, operation on protective low voltage
Operating principle
Through-beam sensor
Evaluation
digital
Design
Cuboid design
Consisting of
Transmitter and Receiver

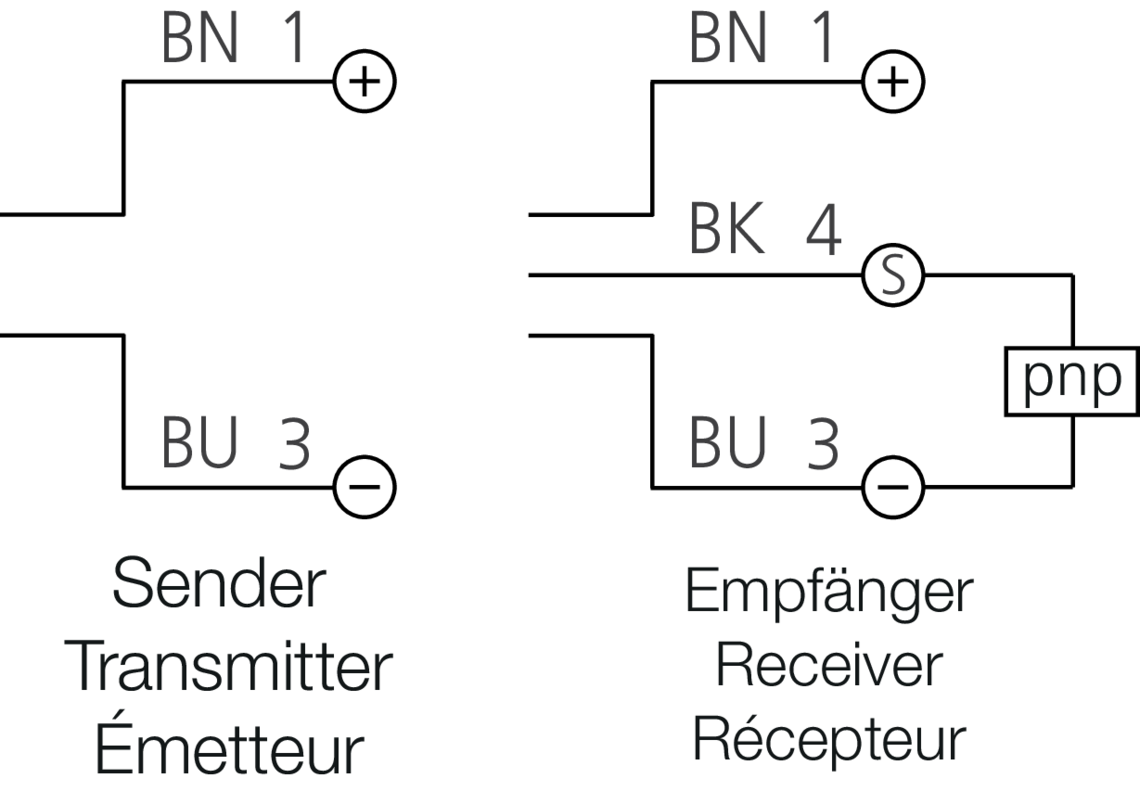

Switching output
pnp, 50 mA, NO/NC, switchable
Voltage drop (max.)
1 V
Light source
LED
Color
red
Wavelength
660 nm
Modulation
Clocked
Ambient light immunity
3 kLx
Range
0 … 2000 mm
Sensitivity adjustment
Potentiometer
Display
LED Green – Operation, yellow – Switching output
Switching frequency
1000 Hz
Response time
0.50 ms
Release time
0.50 ms
Ambient temperature during operation
-25 … +55 °C
Vibration/shock resistance
10 … 500 Hz / 1.5 mm / 10 G
Protection type
IP 67
Connection
Cable, 2.0 m (flying leads)
