Sensor Di-soric Is 70 Psk-tssl – 24vdc – Pnp – No – 200ma

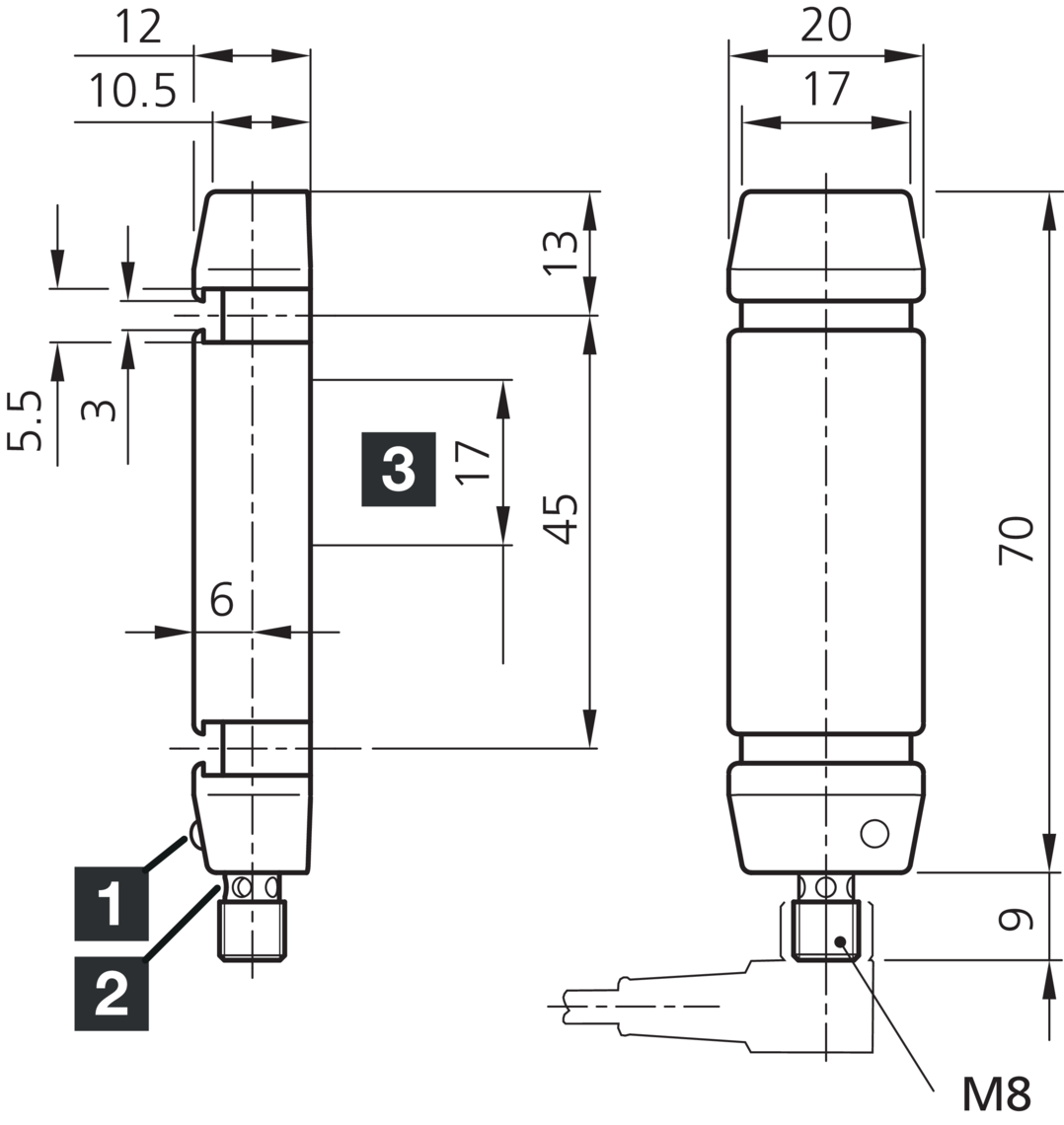

Our inductive tube sensors in static design can detect the smallest metallic parts are reliably. They are very well suited for quickly supplied parts and for the detection of material accumulation. They are available in the size 70 x 20 x 12 mm.
- Compact design
- High resolution
- Low weight
- Metal connector M8
- Slot for quick mounting
- Cable tie contained in scope of delivery
- Static operating principle
Service voltage
10 … 35 V DC (Supply Class 2)
No-load current (max.)
15 mA
Insulation voltage endurance
500 V
Housing length
70 mm
Housing height
12 mm
Housing width
20 mm
Housing material
Plastic (PC)
Protection class
III, operation on protective low voltage
Approvals
UL
Operating principle
inductive
Evaluation
Static
Design
Cuboid design
Switching output
pnp, 200 mA, NO
Voltage drop (max.)
2 V
Pulse stretching
100 ms
Switching distance
14 mm
Display
LED Green – Operation, yellow – Switching output
Speed of parts (max.)
35 m/s
Response time
0.50 ms
Release time
100 ms
Shock/vibration load
30 g, 11 ms / 10 … 55 Hz, 1.0 mm
Ambient temperature during operation
-25 … +70 °C
Protection type
IP 67
Connection
Connector, M8, 3-pin
Connection cable
TK …
